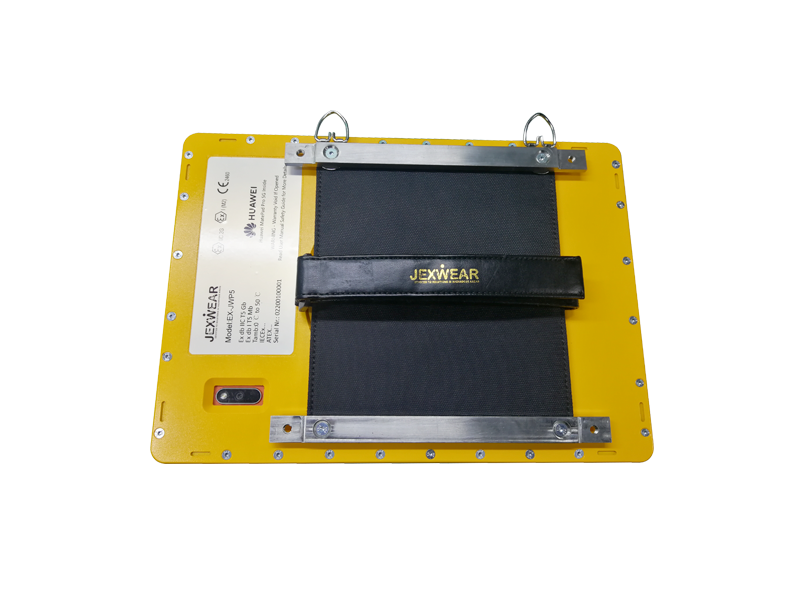

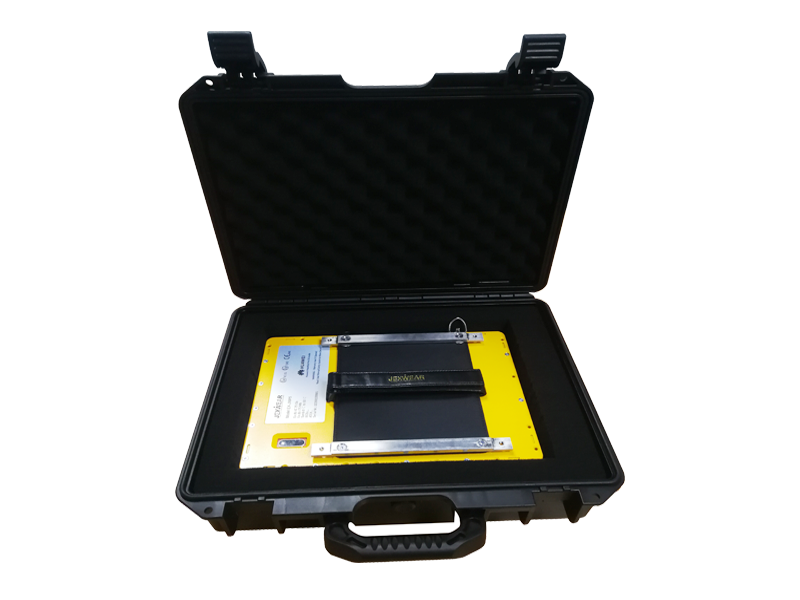

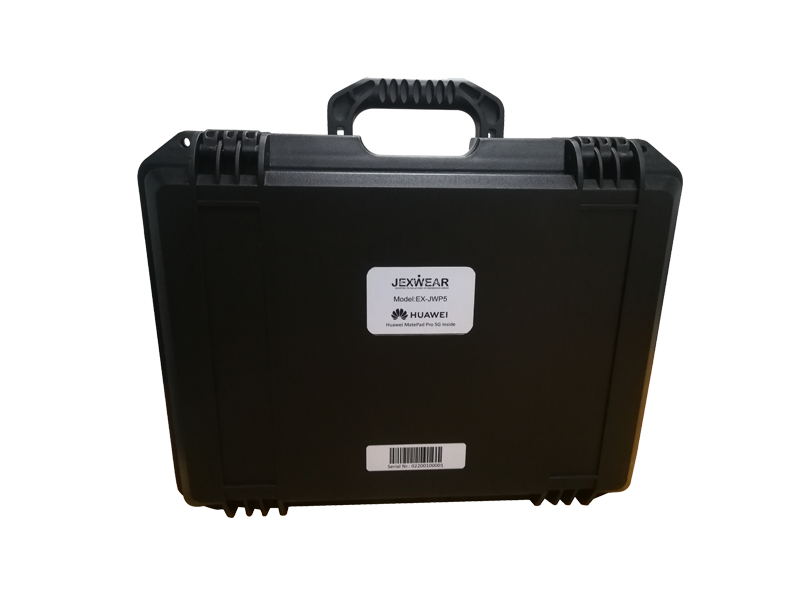

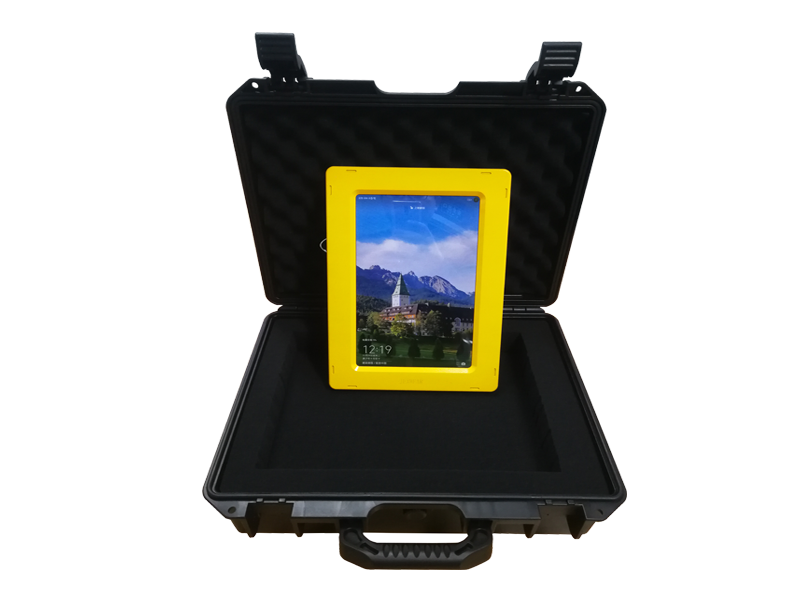

Explosion Proof ATEX / IECEx Zone 1 & Zone 2 5G Pad

All new from Jexwear Manufacturing, EX-JWP5 now suitable for use in zone 1 & zone 2 hazardous locations, which comes with an special polycarbonate case finish and an brand pad(many models are available). The explosion proof pad are originally manufactured by original brand than converted and certified according to ATEX and IECEx by Jexwear Manufacturing. This makes the pads suited for safe use in gas zone 1 & zone 2 hazardous locations.

Compliance with ATEX / IECEx regulations is achieved by modification of the casing together with the safe electrical circuit, which makes the pads suitable for safe use in zone 1 & zone 2 hazardous locations. All features of the original product are preserved. The EX-JWP5 can be wired or wireless charged in a safe area.

Beside safe use as Pad, all versions are excellent for use as safe video or photo camera with WIFI / 5G connection, or Bluetooth.


Benefits:Applications:Features:
Make better decisionsOil and GasHD video streaming
Increase flexibilityPetrochemicalHigh end imaging
Decrease travel expensesMiningLight and flexible
Improve work routinesManufacturingGlove compatible


Conversion of multiple brands possible

This product is developed and designed based on Huawei MatePad Pro 5G. We have carried out a secondary expansion design to make it compatible not only with Huawei's Pad, but also with other brands of Pads. Jexwear Manufacturing has capabilities to produce explosion safe variants of other Pads and or devices from leading brands like Huawei, Samsung, Apple etc. Please contact us for the possibilities.

The design and development work has been completed according to ATEX & IECEx standards, and we are willing to promote its certification process if there is a customer placing an order.

Specifications

✽ Product Description

Explosion Proof ATEX Zone 1 & Zone 2 5G Pad

✽ Certification

29_content_1600410601929787 2.jpg I M2 Ex db I Mb

29_content_1600410601929787 2.jpg II 2 G Ex db IIC T4 Mb

✽ Painting

RAL 1028

✽ Ingress protection level

IP66/IP68

✽ Ambient temperature

0 °C up to +50 °C

✽ Material

Polycarbonate

✽ Dimensions (Typical version)

308mm x 221mm x 25.5mm (Customizable)

✽ Weight (Typical version)

Approx 1.86kg (Including the standard Pad)
