The EX-CA-AI01/02 Series consists of different video cameras that are approved for dust and gas explosion risk zones, in accordance with the EU Directive 2014/34/EU (ATEX) and IECEx Schema. It is well suited for video surveillance in hazardous environments, zones 1 & 2 (Gas) and zones 21 & 22 (Dust), as well as in harsh weather conditions (IP68).
| Specifications | |
✽ Model | EX-CA-AI01/02 |
✽ Product description | Fixed Explosion-proof Camera |
✽ Type of protection | Type of protection “db”, “tb” |
✽ Certification |
|
✽ Standards | IEC 60079-0:2017 IEC 60079-1:2014-06 IEC 60079-31:2013 EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-31:2014 |
✽ Ingress protection level | IP68 (1.2m/45min) |
✽ Ambient temperature | -40 °C up to +60 °C with defroster -25 °C up to +60 °C without defroster |
✽ Enclosure material | SS304/ SS316L |
✽ Relative humidity | 0 to 95%, non condensing |
✽ Max. power | 15W / 25W(with thermostat) |
✽ Power supply | 100-240VAC/ 24VDC/ PoE |
✽ Communication | RS485/ Pelco D/ Pelco P |
✽ Dimensions | 570(L)mm x 217(H)mm x 176(W)mm |
✽ Weight | Appr. 20Kg |

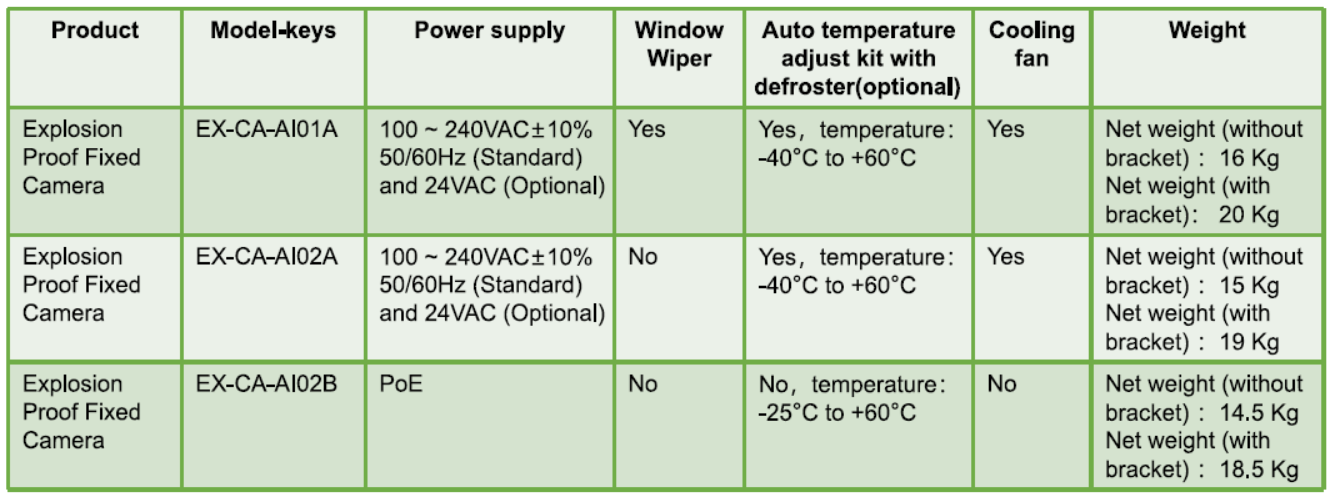

| ORDERING INFORMATION | |
II 2 G Ex db IIC T6 Gb
