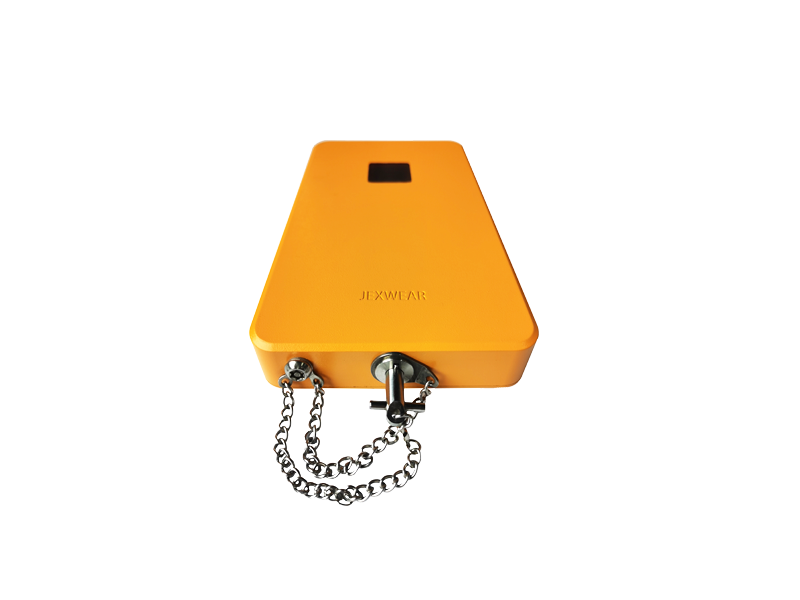

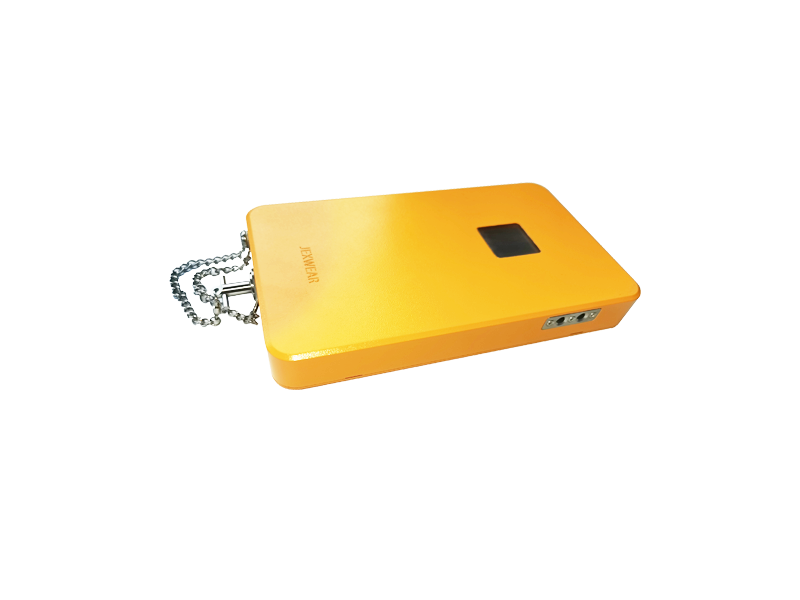

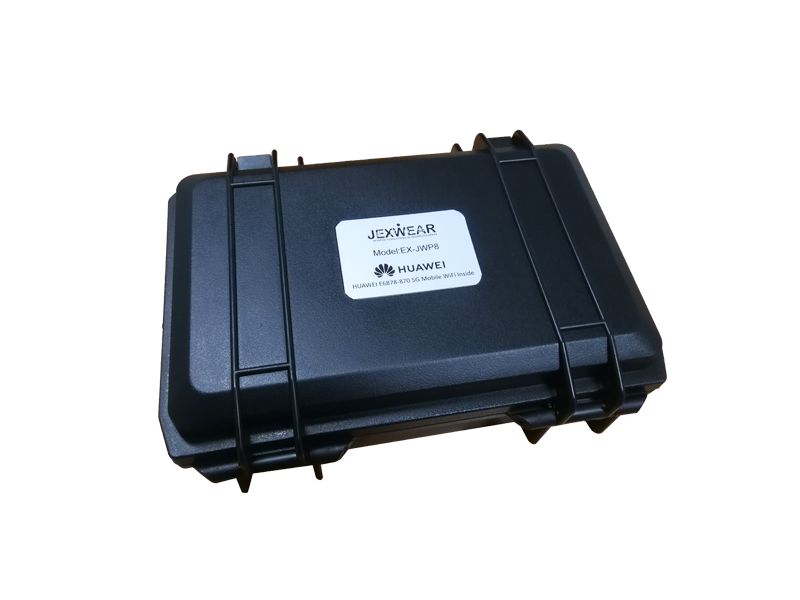

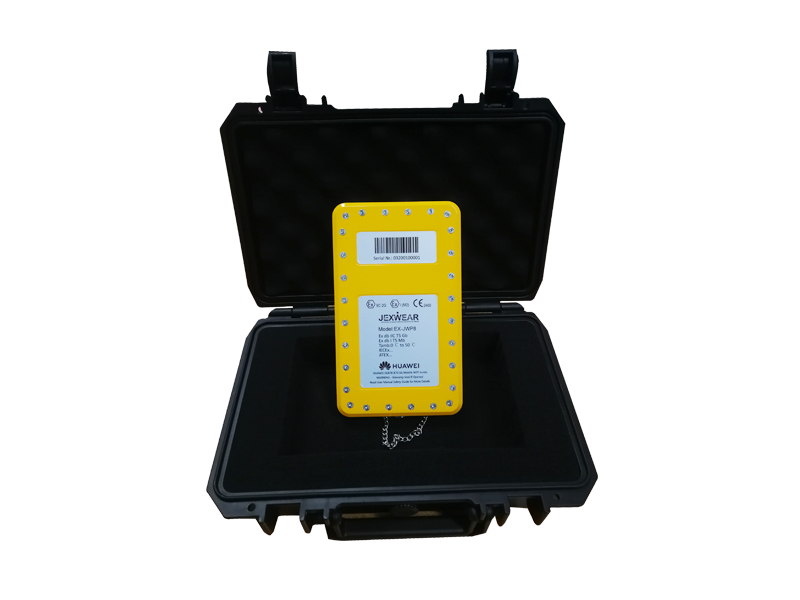

Explosion Proof ATEX / IECEx Zone 1 & Zone 2 5G MiFi
All new from Jexwear Manufacturing, EX-JWP8 now suitable for use in Zone 1 & Zone 2 hazardous locations, which comes with an special polycarbonate case finish and an brand MiFi (many models are available). The explosion proof MiFi are originally manufactured by original brand than converted and certified according to ATEX and IECEx by Jexwear Manufacturing. This makes the MiFi suited for safe use in gas zone 1 & Zone 2 hazardous locations.
Compliance with ATEX / IECEx regulations is achieved by modification of the casing together with the safe electrical circuit, which makes the MiFi suitable for safe use in zone 1 & Zone 2 hazardous locations. All features of the original product are preserved. The EX-JWP8 can be wired charged in a safe area.
It creates a high-speed packet access mobile hotspot in Zone 1 & Zone 2 hazardous locations.
Benefits: | Applications: | Features: |
Make better decisions | Oil and Gas | Incredible 5G Speed |
Increase flexibility | Petrochemical | Large Battery |
Decrease travel expenses | Mining | Light and flexible |
Improve work routines | Manufacturing | More Usage Scenarios |
Conversion of multiple brands possible
This product is developed and designed based on Huawei E6878-870 MiFi. We have carried out a secondary expansion design to make it compatible not only with Huawei's MiFi, but also with other brands of MiFi. Jexwear Manufacturing has capabilities to produce explosion safe variants of other MiFi and or devices from leading brands like Huawei, Samsung, Apple etc. Please contact us for the possibilities.
The design and development work has been completed according to ATEX / IECEx standards, and we are willing to promote its certification process if there is a customer placing an order.
Specifications | |
✽ Product Description | Explosion Proof ATEX Zone 1 & Zone 2 5G MiFi |
✽ Certification | I M2 Ex db I Mb II 2 G Ex db IIC T4 Mb |
✽ Painting | RAL 1028 |
✽ Ingress protection level | IP66/IP68 |
✽ Ambient temperature | 0 °C up to +50 °C |
✽ Material | Polycarbonate |
✽ Dimensions (Typical version) | 191mm x 113mm x 25.5mm (Customizable) |
✽ Weight (Typical version) | Approx 730 g (Including the standard MiFi) |
