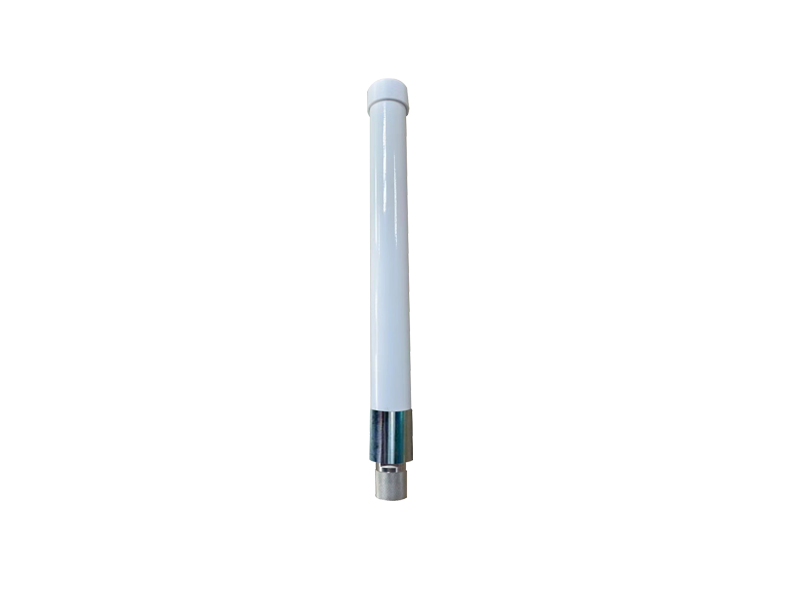

Radiation Resistant Antenna
Leave a message to get the price of the product you want to know? We will reply as soon as possible (within 12 hours)
- Information
- Video
- Resources
This antenna can be applied in environments with radiation resistance requirements.
| Specifications | |
✽ Impedance | 50 Ω |
✽ Bandwidth | 100 / 700 MHz |
✽ Frequency Range | 2.4-2.5GHz / 5.15-5.85GHz |
✽ Polarization | Vertical |
✽ VSWR | ≤2 |
✽ Gain | 5±1dBi@2400～2500MHz / 7±1dBi@5150-5850MHz |
✽ Non-circularity | ±2 dB |
✽ Max. Power | 50w |
✽ Connector Type | N Female / N Male |
✽ Size | φ28*（250±5）mm |
✽ Weight | 160±10g |
✽ Radome Material | Glass Fiber Reinforced Plastics(GFRP) |
✽ Radome Color | White |
✽ Bottom Material | Brass painted by ternary alloy |
✽ Operating Temperature Range | -40 °C up to +70 °C |
✽ Storage temperature range | -45 °C up to +80 °C |
✽ Relative Humidity | 5～95% |
✽ Salt-spray resistance | 240 hours of neutral salt spray（GB/T 2423.17-2008） |
✽ Ingress protection level | IP65 |
