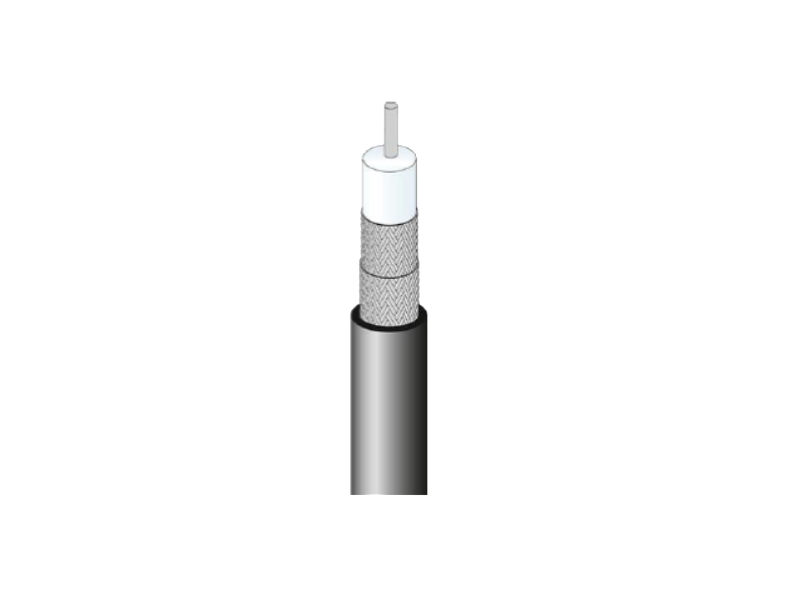

Radiation Resistance RF cables
Leave a message to get the price of the product you want to know? We will reply as soon as possible (within 12 hours)
- Information
- Video
- Resources
The service life of conventional RF cables will be significantly reduced in the radiation environment, so it is necessary to adjust the material of the cable to resist the impact of radiation on the service life of the cable.
| Specifications | |
✽ Impedance | 50±2Ω |
✽ Velocity | 85% |
✽ Insulation Resistance | 5000 MΩ.km |
✽ VSWR | ≤1.15@DC~3 GHz, ≤1.25@3~6GHz |
✽ Single Min. bending radius | 32.5 mm |
✽ Repeated Min.bending radius | 65 mm |
✽ Storage Temperature | -40 ℃ ~ +85 ℃ |
✽ Installation Temperature | -40 ℃ ~ +60 ℃ |
✽ Operation Temperature | -40 ℃ ~ +115 ℃ |
✽ Flame Retardant Rating | VW-2 |
