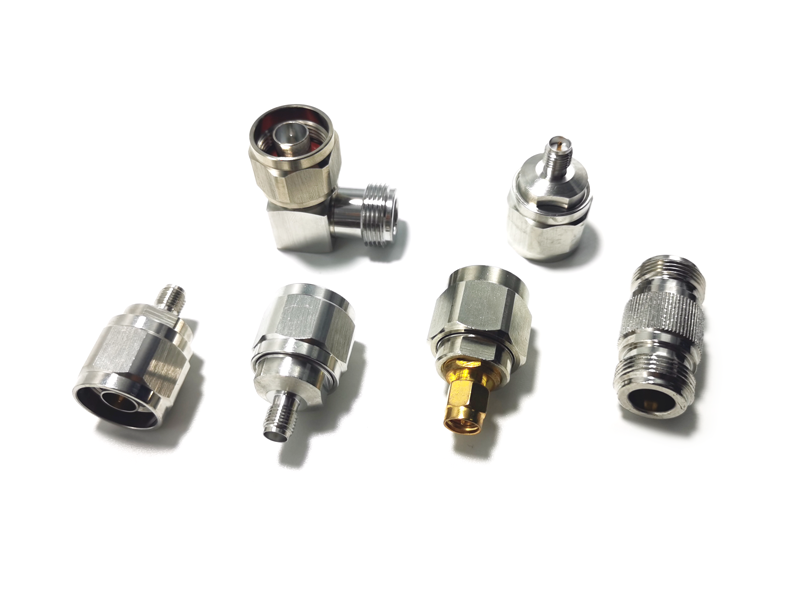

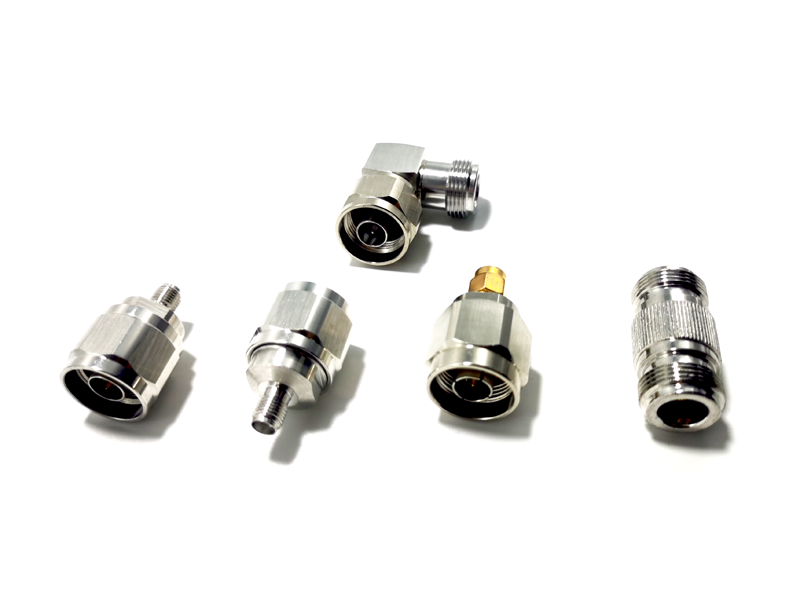

RF Connectors
Leave a message to get the price of the product you want to know? We will reply as soon as possible (within 12 hours)
- Information
- Video
- Resources
We can design and produce RF connectors for special applications according to customer requirements.
| 1. Material & Coat-Plating | |
✽ Inner Conductor | Beryllium Copper, Gold |
✽ Insulator | PTFE/PEI |
✽ Enclosure | Stainless Steel, Passivated or Copper, Nickel-plated |
| 2. Electrical | |
✽ Impedance | 50 Ohm |
✽ Insulation Resistance | 5000 MΩ MIN. |
✽ Frequency Range | DC-6 GHz |
✽ Dielectric Withstanding Voltage | 1000 VRMS. MIN. |
✽ VSWR | 1.10 Max. @ DC-3 GHz / 1.20 Max. @ 3-6 GHz |
✽ Insertion Loss | 0.3dB Max. @ DC-3 GHz / 0.5dB Max. @ 3-6 GHz |
| 3. Mechanical | |
✽ RF Connection Durability | 500 CYCLES MIN. |
✽ Temperature Range | -55 °C up to +125 °C |
✽ Relative humidity | 0 to 95%, non condensing |
| 4. Environmental | |
✽ Degree of protection (IP) | IP66&IP68（by gasket） |
